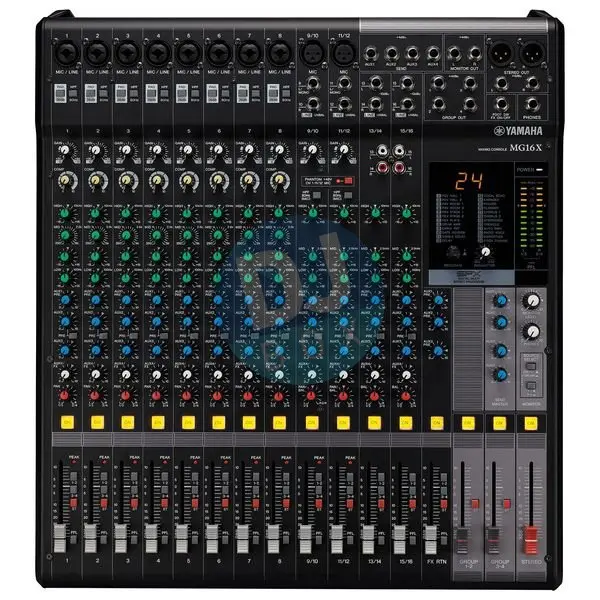

Yamaha MG16X

Product image 1

Yamaha MG16X

Yamaha MG16X - 16 channel mixer, 10 mic inputs "D-PRE" mic preamp with inverted Darlington circuit (XLR/jack) with +48V phantom power (channel 1-2 with built-in compressor), 3 band EQ, high-pass filter and 26dB pad switch, 4 stereo inputs (jack) with 2 band EQ, XLR main outputs, 2 group bus outputs, 4 aux ways for all channels, 1 effects unit with 24 different effects, internal power supply.


  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
  • Net Weight: 6.8 kg (15.0 lbs.)


Yamaha MG16X - 16 channel mixer, 10 mic inputs "D-PRE" mic preamp with inverted Darlington circuit (XLR/jack) with +48V phantom power (channel 1-2 with built-in compressor), 3 band EQ, high-pass filter and 26dB pad switch, 4 stereo inputs (jack) with 2 band EQ, XLR main outputs, 2 group bus outputs, 4 aux ways for all channels, 1 effects unit with 24 different effects, internal power supply.


  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
  • Net Weight: 6.8 kg (15.0 lbs.)

$203.51

Original: $678.37

-70%
Yamaha MG16X—

$678.37

$203.51

Description

Yamaha MG16X - 16 channel mixer, 10 mic inputs "D-PRE" mic preamp with inverted Darlington circuit (XLR/jack) with +48V phantom power (channel 1-2 with built-in compressor), 3 band EQ, high-pass filter and 26dB pad switch, 4 stereo inputs (jack) with 2 band EQ, XLR main outputs, 2 group bus outputs, 4 aux ways for all channels, 1 effects unit with 24 different effects, internal power supply.


  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
  • Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
  • Net Weight: 6.8 kg (15.0 lbs.)
